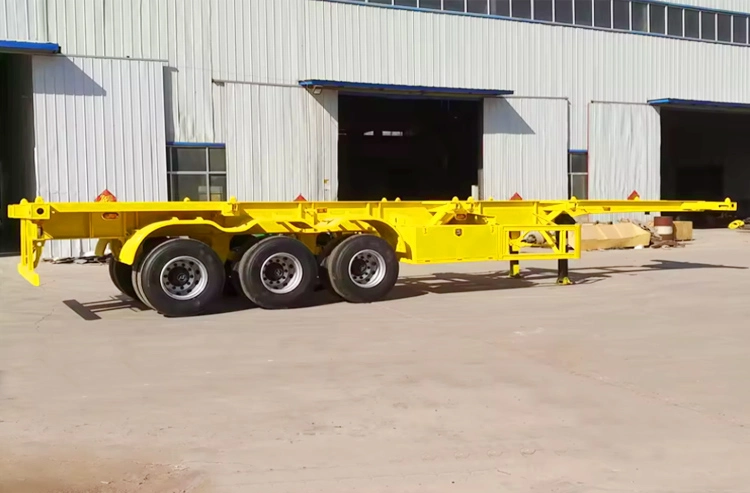

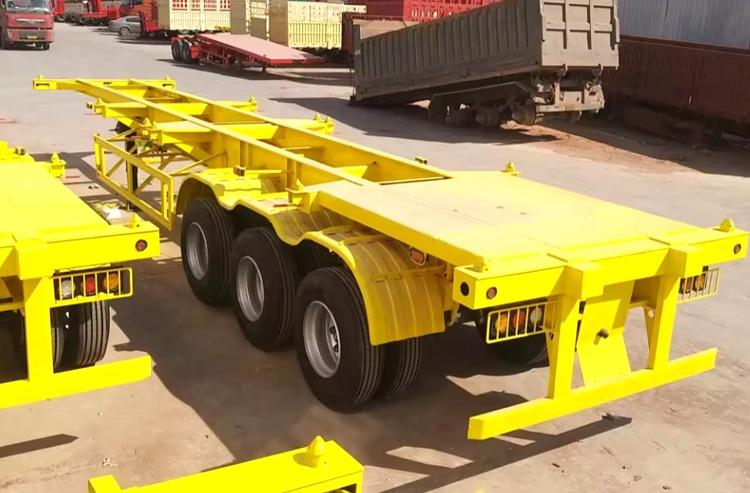

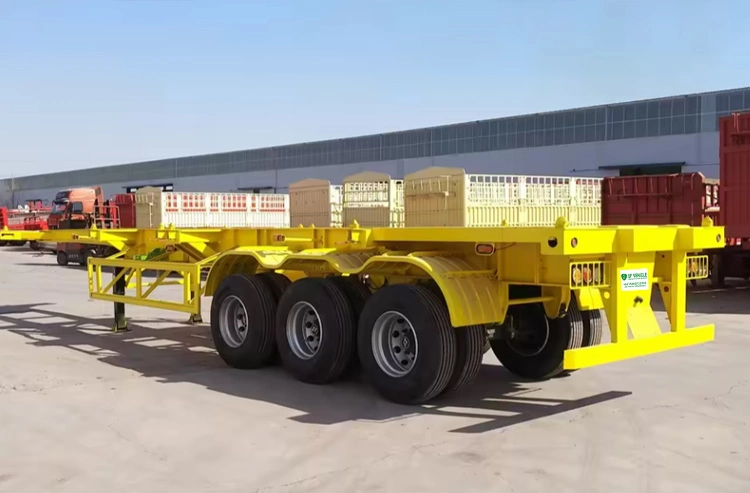

Sinotruk 3 Axle Sided Flatbed has safety features to ensure the safety of goods during transportation. Flatbed container trailers are usually equipped with locking and sealing devices to prevent theft and unauthorized access. Sinotruk 3 Axle Sided Flatbed trailer can also provide protection during transportation to protect the goods from factors such as the external environment, weather and road conditions.
|
Model |
sinotruk howo Container Semi Trailer |
|
Dimension |
12500 x 2500 x 1620mm |
|
Curb Weight |
7.5Tons |
|
Loading Capacity |
60 Tons |
|
Twist Lock |
12sets, suitable to accept 1×20,2×20,1×40 container; Manual operation |
|
Platform |
3mm thick checkered plate |
|
Kingpin |
JOST 2.0 / 3.5 Inch |
|
Landing Gear |
JOST 28 Tons |
|
Main Beam |
Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
|
Side Beam |
16mm steel channel |
|
Suspension |
America type mechanical suspension |
|
Spring Leaf |
90mm x 13mm x 10 layers |
|
Axles |
FUWA Brand, 13Tons |
|
Tires |
12.00R20 or 315/80R22.5 |
|
Brake Chamber |
T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
|
Electrical |
24V |
|
Tool Box |
1000 x 500 x 500 mm |
